Colony Counting using YOLOv8n

Published

May 12, 2026

Model used is YOLOv8n pretrained on colonies (Wang et al. 2025), but optimized for our use. The process is as follows:

flowchart TD
    A["Load image"] --> B["Find Petri dish with OpenCV"]
    B --> C["Create inner dish mask"]
    C --> D["Black out area outside dish"]
    D --> E["Run YOLO on masked image"]
    E --> F["Filter YOLO boxes"]
    F --> G["Count accepted colonies"]
    G --> H{"More than 300?"}
    H -->|Yes| I["Report too many to count"]
    H -->|No| J["Report final count"]
    I --> K["Draw, crop, and save output"]
    J --> K
    K --> L["Return result data"]

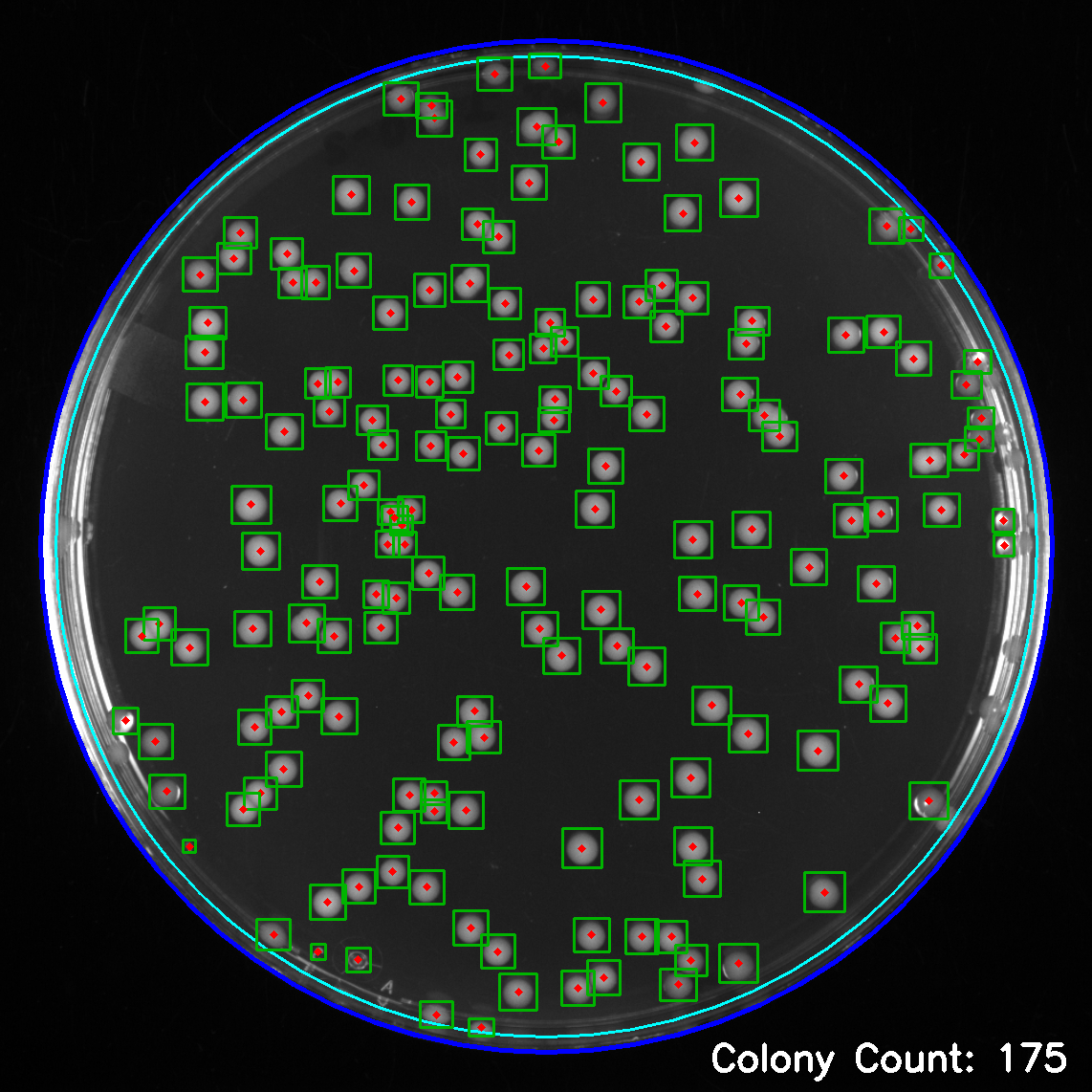

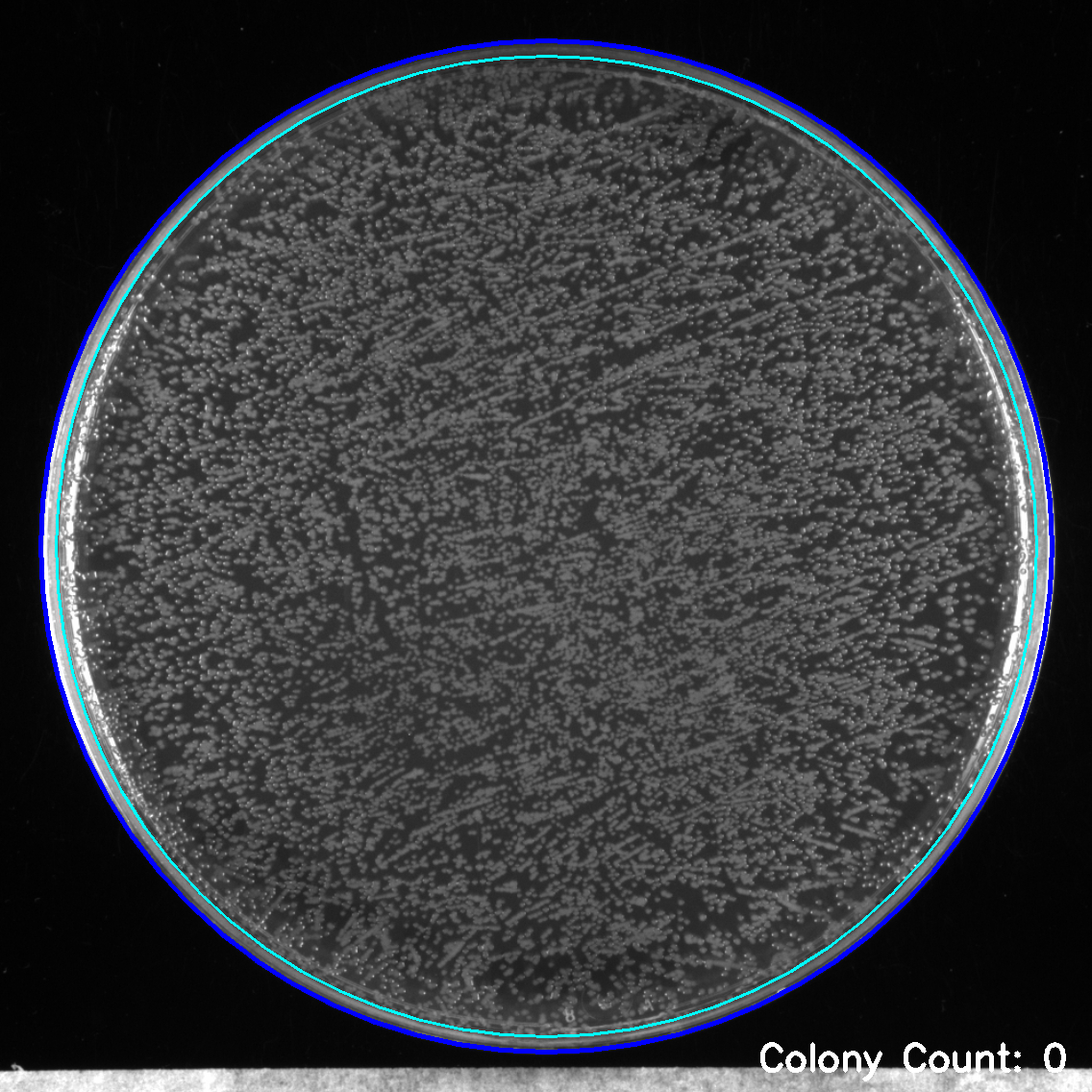

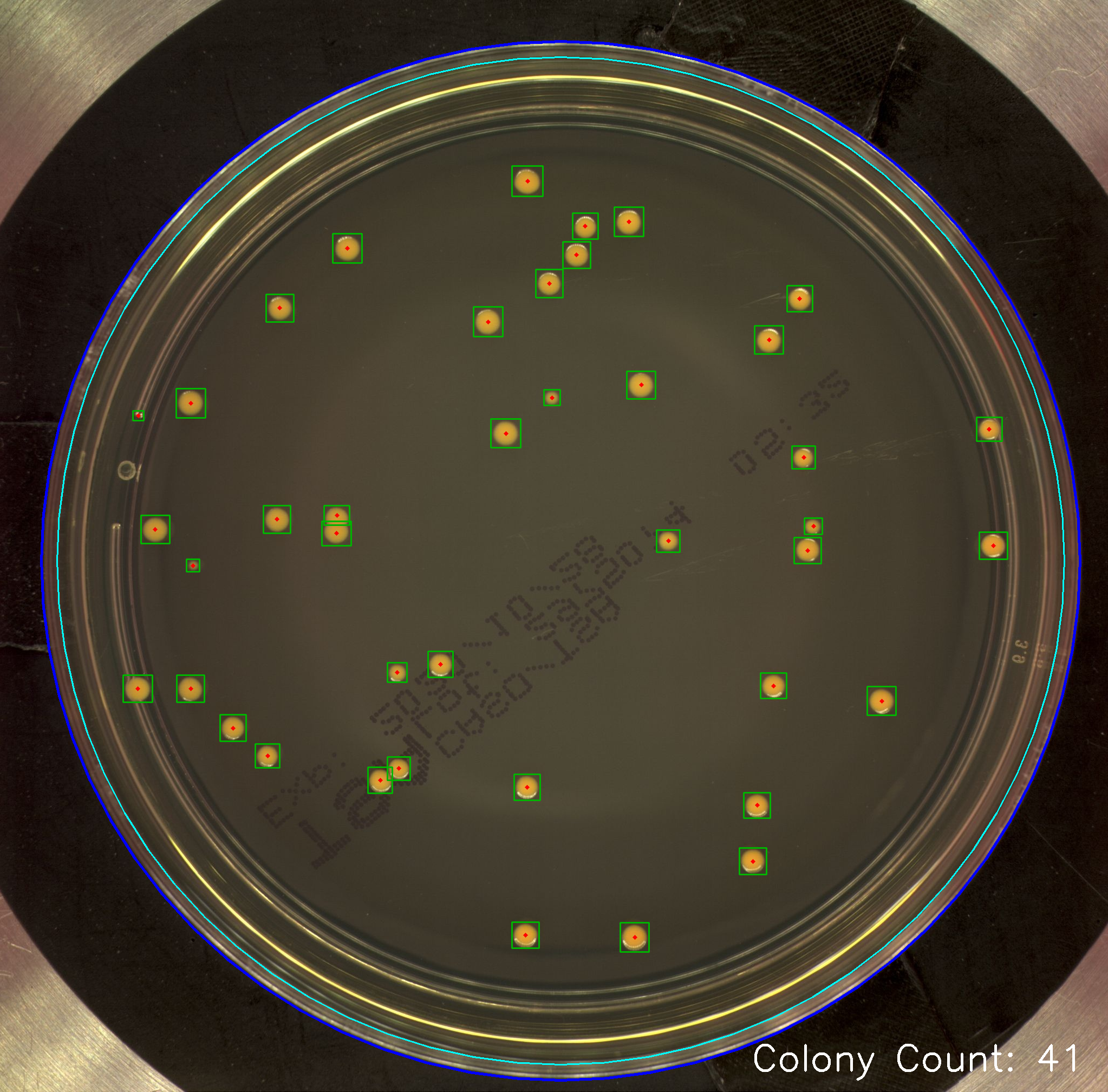

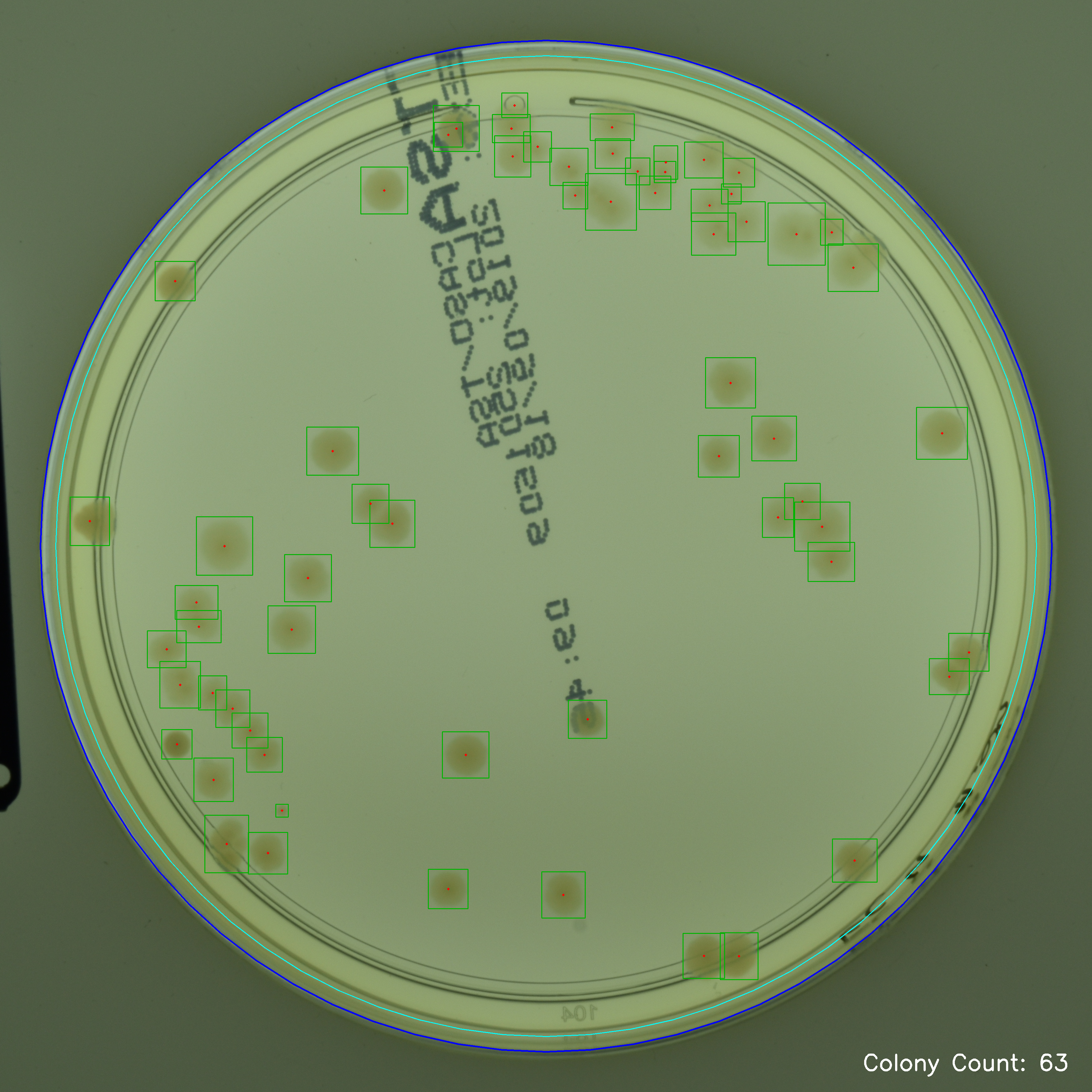

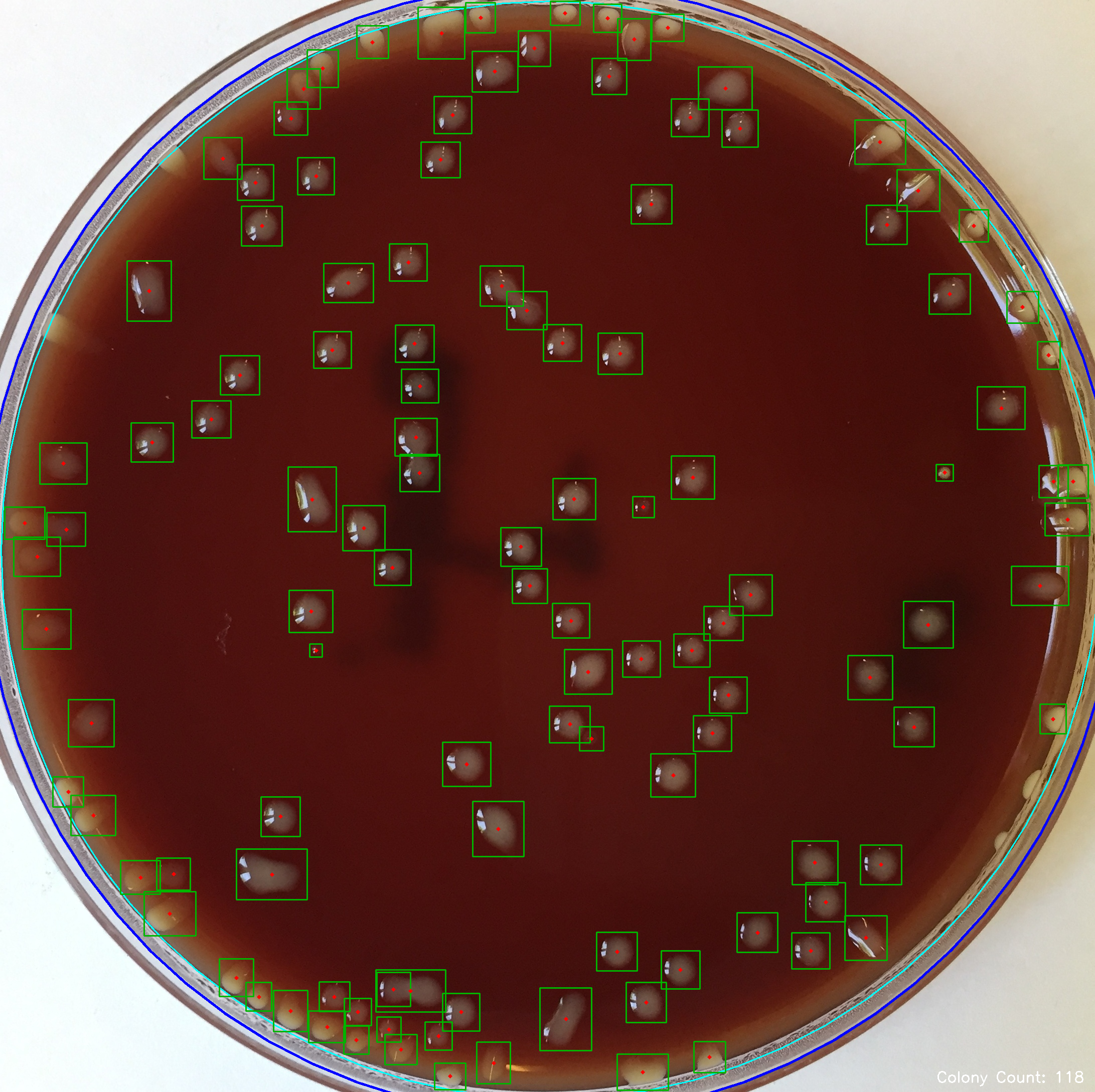

Flowchart outlines the steps involved in the colony counting process using YOLOv8n. Below are some sample images obtained from using the model to count colonies on our plates/public datasets. Does a pretty good job overall. We can further optimize the model (though this requires labelling of our data) and the filtering process to improve accuracy, but this is a solid starting point for our colony counting needs.

It has trouble with the smallest colonies, which is expected since these cases were not included in the public training data. Again, we can improve this by labelling some of our own data and fine-tuning the model.

YOLOv8n Training

I chose the model because it is the smallest and fastest YOLOv8 model, which is ideal for our application where we need to process a large number of images efficiently. It also isn’t too old of a model. At the end of training, best.pt ended with:

Precision: 0.866
Recall: 0.788
mAP50: 0.845
mAP50-95: 0.484
Planned: 50 epochs
Actually completed: 46 epochs
Best model: epoch 36

Detecting the plate

Hough Circle Transform is used to find the circular shape of the Petri dish in the image. This allows us to create a mask that isolates the area of interest (the inside of the dish) and eliminates any background noise that could interfere with colony detection. From what I understand the method converts the image to grayscale, applies a Gaussian blur to reduce noise, and draws circles of differing radii based on the detected edges. The point at which most circles overlap is likely the center of the dish, and the radius can be determined from the distance to the edge of the dish.

References

Wang, Meihua, Junhui Luo, Kai Lin, et al. 2025. “Colony-YOLO: A Lightweight Micro-Colony Detection Network Based on Improved YOLOv8n.” Microorganisms 13 (7): 1617. https://doi.org/10.3390/microorganisms13071617.
